Fire Fighters is the controlling component of a fire alarm system. The panel receives information from devices designed to detect and report fires, monitors their operation integrity and provides for automatic control of equipment, and transmission of information necessary to prepare the facility for fire based on a predetermined sequence. The panel may also supply electrical energy to operate any associated initiating device, notification appliance, control, transmitter or relay.
Features

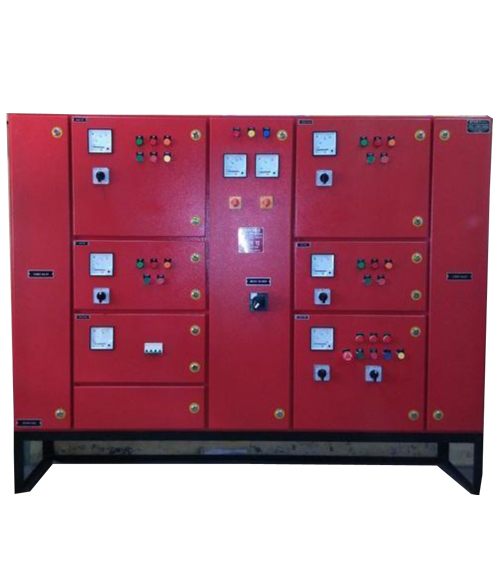

Fire Fighting Pump control panel (Star delta starter, DOL starter, VFD starter) with necessary safety features for Hydrant Pump, Sprinkler Pump, Jockey Pump & Booster Pump.
Suitable to work in Auto & Manual mode to maintain water pressure in hydrant & sprinkler water line.
The Fire Panel receives signal from alarm devices like Pressure Switch and activates motor control devices to provide power to fire pumps and monitor its performance.
Application |
Specification |
Supply Voltage: |
3 Phase, 4 Wire, 440V AC, 50Hz + Earthing provision |
Rated Current: |
100Amp to 6300Amp |
Rated Insulation: |
1100 V |
Ambient Temperature: |
45 Deg C |
Degree of Protection: |
IP42, IP45, IP55 |
System Protection: |
Earth Fault, Under Voltage, Overload, Surge protection, Single phasing, Short circuit |
Type Tested: |
Megger Test, HV Test |
Bus Bar (EC Grade): |
Aluminium, Copper with colour coded Heat shrink sleeve |
Switchgear: |
Schneider, Siemens, L&T, Legrand, C&S, Eaton |
Mounting: |
Base Frame, Stand, Wall Mounting |
Cable Entry: |
Top, Bottom |
Fabrication: |
1.6/2.0 mm thick CRCA sheet metal, standard Heavy duty Door Hinges, 7 tank Process powder coating, colour: RAL7035/RAL7032, Dust proof Gasket. |
Termination: |
Termination space according to Ampere Rating, 2.0/3.0 mm thick Gland plate with Gasket. |
